A pirate ship ride is a classic swinging amusement ride featuring an open, ship-shaped gondola. Beston 40-seat Royal Flagship reaches its maximum angle of 60° to each side in just 6 back-and-forth swings. The angle is set by balancing safety requirements, structural strength and ergonomic limits, so as to deliver a thrilling yet controlled weightless feeling.
Pirate Ship Ride Video – Full of Thrill and Fun
The video below shows a Beston pirate ship ride during a factory test run.

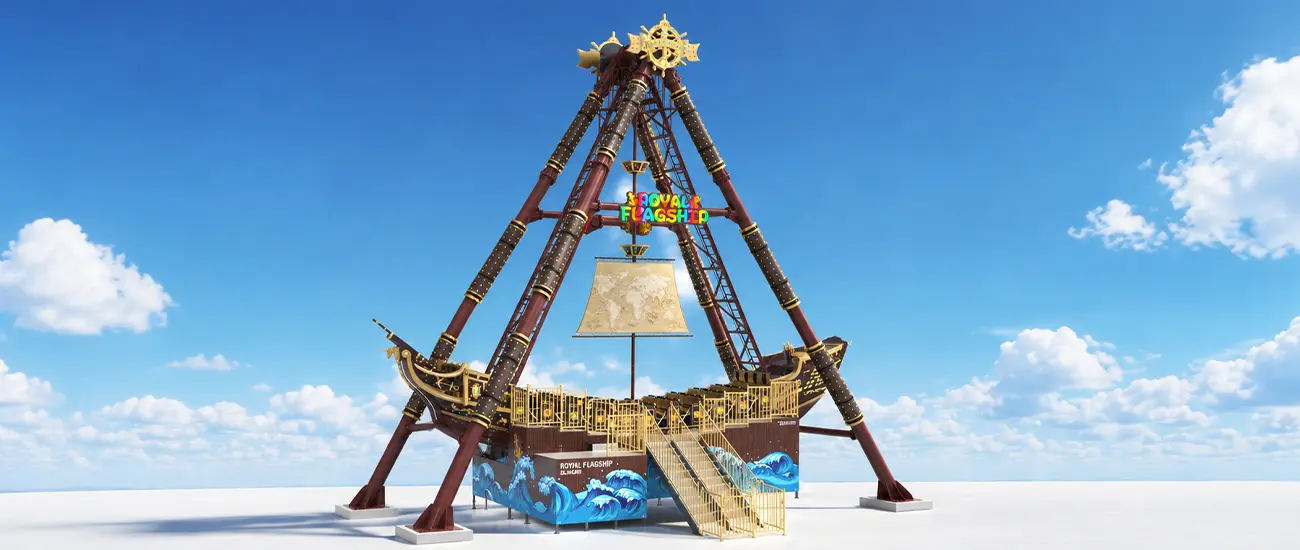

- Model: Royal Flagship (GLH40A)
- Capacity: 40 seats
- Location: Beston Rides Factory in Jiaozuo, Henan
- Scenes: Daytime close-ups, unload and loaded operation, and nighttime lighting
The hull draws inspiration from classic European sailing warships, immersing riders in the Age of Exploration. Up close, realistic wood-grain finishes and a world-map sail bring the theme to life. After dark, programmable RGB lighting takes center stage, turning the ship into a glowing focal point.

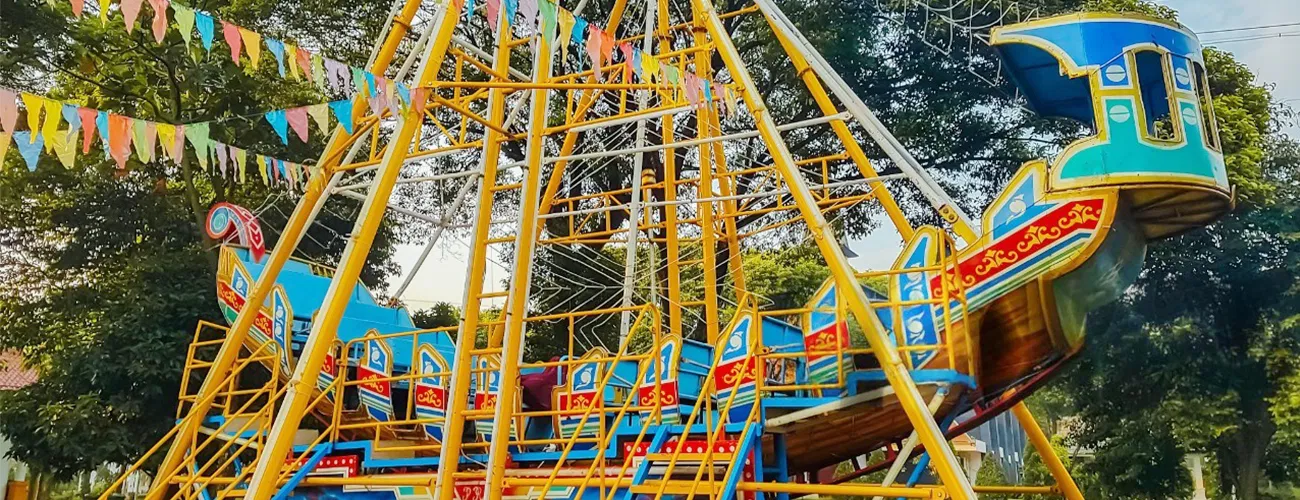

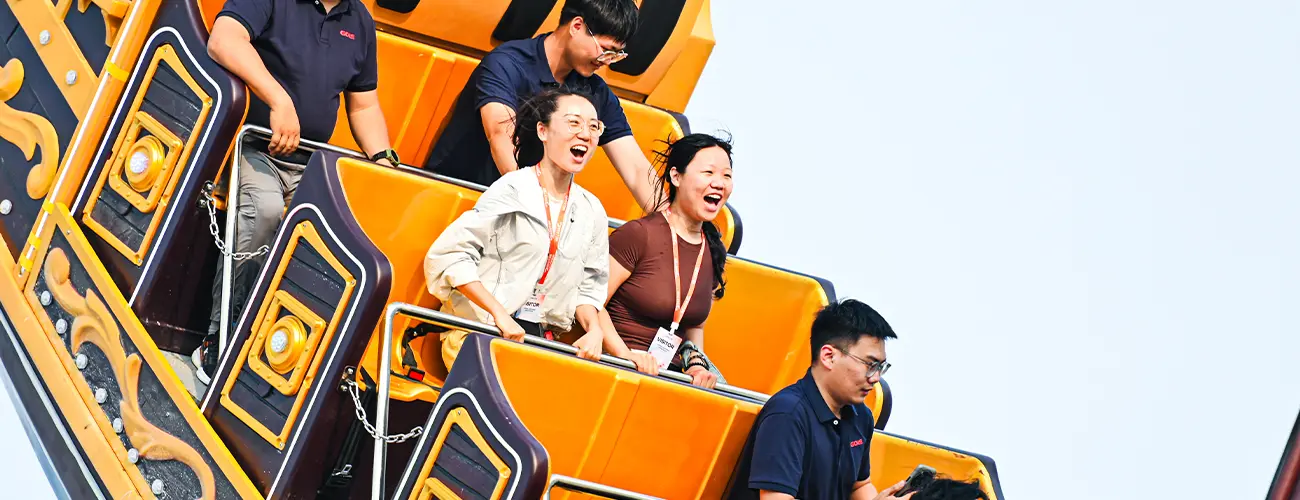

Heart-Pounding Thrills: The 60° Pirate Ship Ride Experience

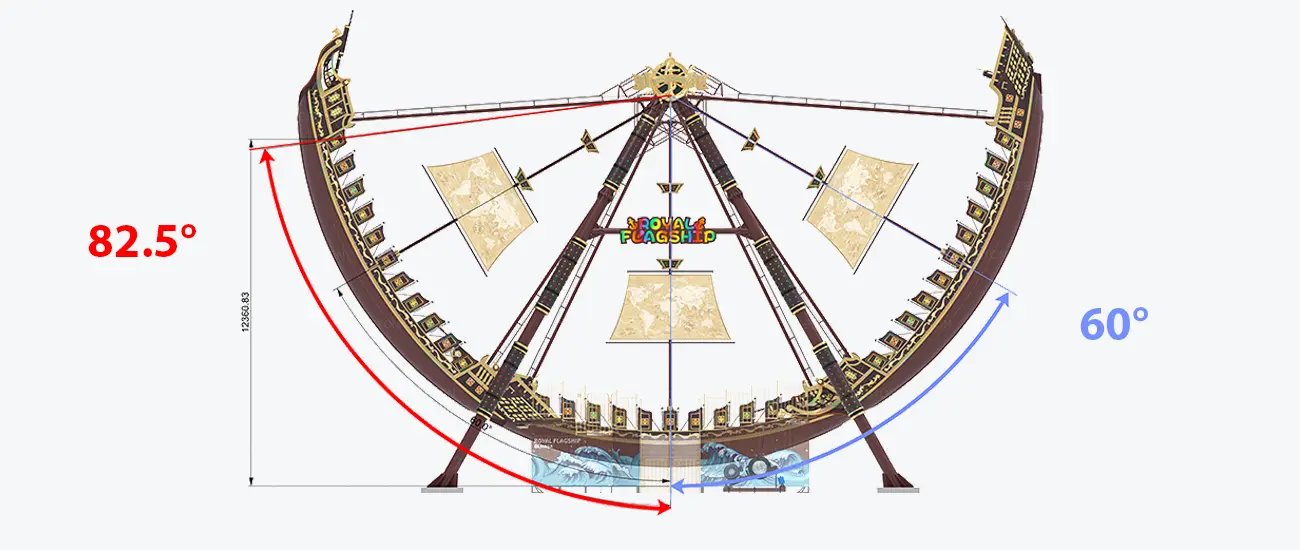

Beston 40-seat pirate ship fair ride swings 60° to each side in just 6 back-and-forth cycles (measured at the ship’s center; reaching 82.5° at the stern), giving riders floating, near-weightless moments at the peak followed by rapid, adrenaline-pumping descents, making the ride ideal for thrill-seeking teenagers and adults.
Floating at the Top
As the ship reaches the apex of each swing, the highest seats reach 12.36 m above the ground, roughly the height of a four-story building. Passengers feel a distinct momentary floating sensation before the ship plunges downward.
Stunning from Above
As gravity pulls the ship downward in acceleration, riders get a breathless visual rush straight toward the ground—an acceleration so intense that many riders can’t help but close their eyes!

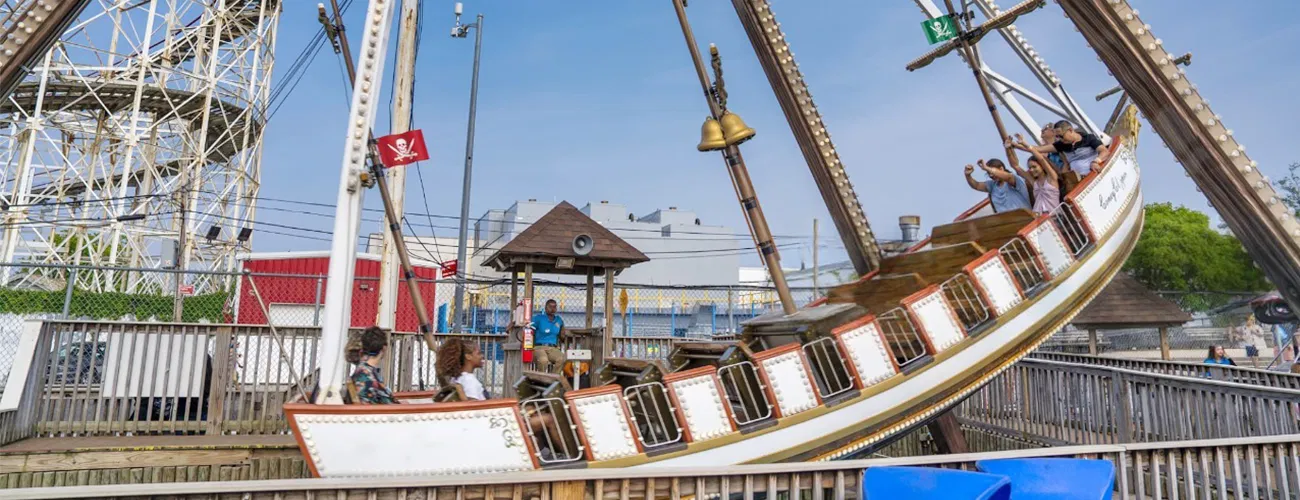

Sweeping at the Bottom
Swooping through the lowest point at speeds up to 11.9 m/s, riders feel a rush of force pressing them into their seats before soaring back up the opposite side.
Diverse Pirate Ship Amusement Ride Models: From Mid to Large Sizes
Beston Rides offers a full line of pirate ship rides ranging from 24-seat mid-sized models to 70+ seat large-capacity models. Below are four of our most popular standard models. Dimensions and capacity can be customized to match your park footprint and throughput goals.
| Model | GLH24A | GLH32A | GLH40A (Royal Flagship) | GLH70A |
|---|---|---|---|---|
| Capacity | 24 persons | 32 persons | 40 persons | 70 persons |
| Total Height | 9.7m | 12m | 17m | 20.6m |
| Operation Height | 8m | 9.2m | 12.4m | 17.3m |
| Maximum Speed | 8.9m/s | 10.2m/s | 11.9m/s | / |
| Swing Angle | ±65° | ±60° | ±60° | ±60° |
| Swing Diameter | 13.6m | 9.5m | 23.4m | 32.6m |
| Total Power | 50kW | 40kW | 65-80kW | 135kW |
| Safety Envelope | 16m × 8m | 14.6m × 8.5m | 27m × 11m | 35.5m × 12.6m |
| Suitable Venues | Small and mid-sized parks | Large theme parks | ||
How Much Does a Pirate Ship Ride Cost?
Beston Rides offers direct factory pricing ranging from $50,000 to $200,000+, depending mainly on passenger capacity, customization (such as themed decorations and lighting), and component quality. Shipping and on-site installation are not included in the prices and vary by project. Below are the approximate price ranges based on capacity:
- Mid-Sized Models (24-36 Seats) : $50,000 – $80,000
- Large-Sized Models (40+ Seats): $80,000 – $200,000+
Pirate Ship Ride: Fast Payback in Just 2.7 Months
Under the assumptions below, an $80,000, 40-seat pirate ship ride pays back in about 2.7 months. At 400 riders a day (300 on weekdays, 650 on weekends) and $3 per ticket, monthly revenue is estimated at $33,600, with a net profit of $29,150 after $4,450 in monthly costs. Below is a more detailed calculation:
| Item | Specification | Amount |
|---|---|---|
| Location: Amusement Park | Average traffic (Conservative estimate) | 400 persons/day |
| Amusement Park | Average traffic (Conservative estimate) | 400 persons/day |
| Ticket Price | Per rider | $3 |
| Equipment Cost | 40-seat pirate ship ride | $80,000 |
| Operating Expenses | Maintenance, consumables, lighting, and annual inspections | $650/month |
| Labor Cost | 2 operators (2 × $400) | $800/month |
| Weekdays (5 days) | 300 persons × $3 × 5 days | $4,500 |
| Weekends (2 days) | 650 persons × $3 × 2 days | $3,900 |
| Weekly Income | Weekly total | $8,400 |
| Monthly Net Profit After Expenses | $29,150/month | |
| Return on Investment (ROI) | 2.7 months | |
| Annual Profit (Based on 12 Operating Months per Year) | $349,800 | |
Note: The calculation excludes shipping, foundation, installation, duties, insurance, electricity, taxes and seasonality.
Trusted Worldwide: Pirate Ship Rides in Global Theme Parks
We have supplied funfair rides to more than 100 large theme parks worldwide. The following projects show three Viking ship rides supplied to parks in different markets.

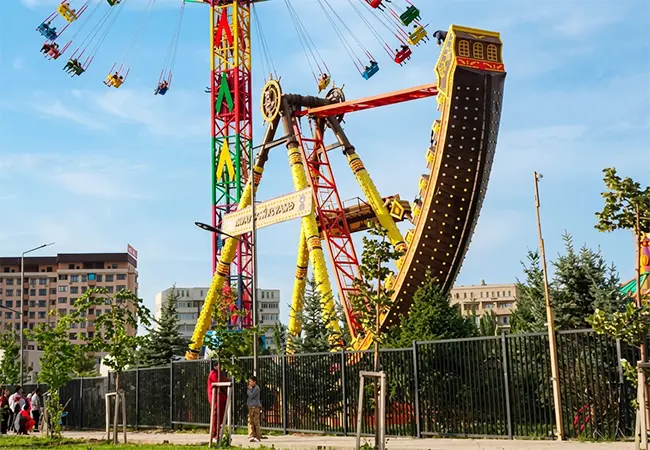

Kyrgyzstan Project: Dependable Performance under High-Throughput

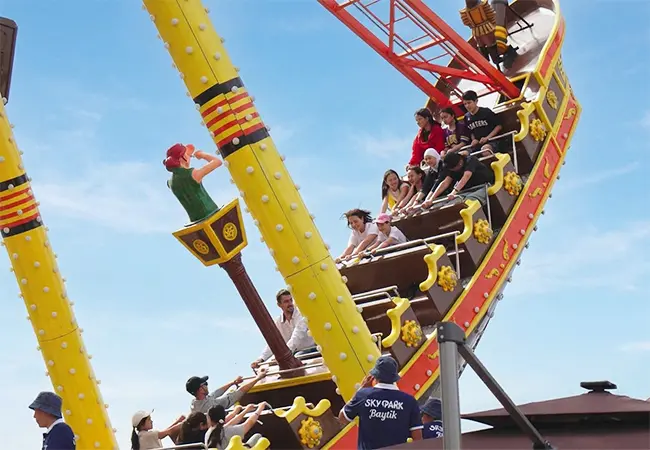

On International Children’s Day (June 1) in 2025, a Beston 40-seat pirate ship ride officially opened at Sky Park Baytik, a 4.5-hectare theme park in Kyrgyzstan. The ride was delivered as part of a comprehensive ride package, operating alongside a 55m drop tower, a 55m swing tower, a double-decker carousel, and others.
- High Capacity: 40 seats, designed for a park that receives 1.5–2.0 million annual visitors.
- Wide Swing Angle: Swings up to 60° to each side, delivering maximum thrill.
- High-Visibility Design: A vibrant yellow color scheme makes it stand out across the park.
- Official Civic Recognition: The mayor of Bishkek and children from a local orphanage attended the opening of the park, highlighting its role as a key public recreation space.
- Strong Profitability Outlook: With reliable equipment operation and high passenger throughput, the park is expected to achieve a 20% long-term net profit margin.

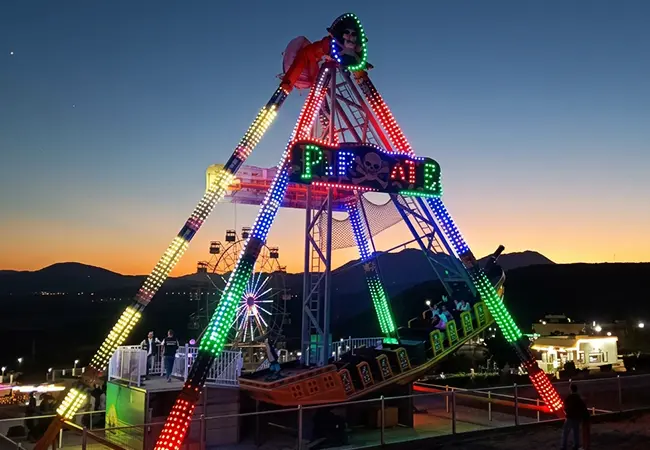

Algeria Project: Designed for Nighttime Operation
- Project Location: Bouchahrine Land in Guelma, Algeria
- Opening Time: August, 2026
- Capacity: 40 persons
- Key Feature: The ride features striking dynamic lighting system, designed to attract evening crowds since Guelma’s large day-night temperature differences lead residents to visit parks mainly at dusk and after dark.

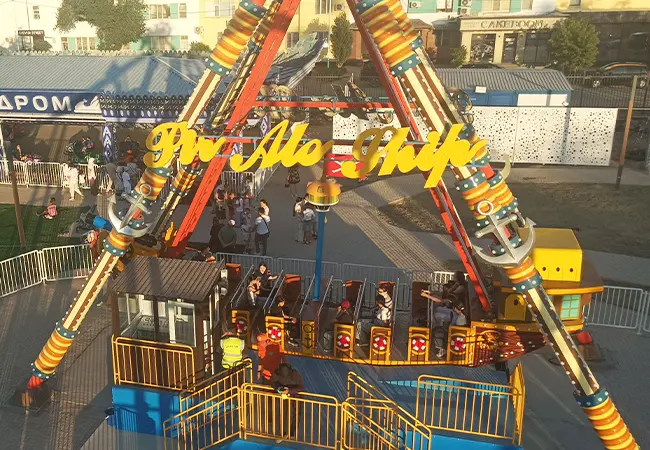

Kazakhstan Project: Driving Modernization of Old City Park
- Project Location: City Park in Kyzylorda, Kazakhstan
- Opening Time: June, 2025
- Capacity: 32 persons
- Project Outcome: As one of the 20 rides we supplied to the park, this ride operated reliably and helped the park triple its year-over-year passenger volume.
Full Customization Adds New Fun to Pirate Ship Ride

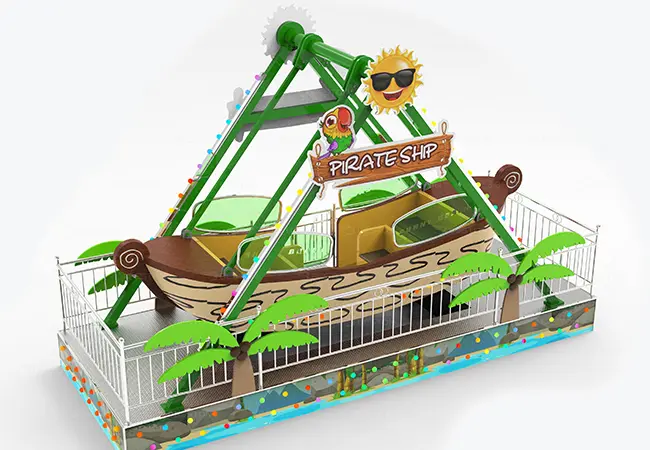

Eye-Catching Themed Appearance Customization
- Diverse Themes: Support styles like cartoon, ice & snow, ocean, adventure, warship, and more for a visually immersive experience.
- Rich Decorations: Canvas sails, anchor chains, cannons, flags, and other authentic pirate elements enhance the realism of the pirate ship fairground ride.
- Figurehead Options: Choose from goddess, dragon, whale, or sea monster sculptures to give the ride a bold and unique character.
- Side Designs: Incorporate relief carvings, water ripple patterns, and wood-grain engravings to create distinctive design details.

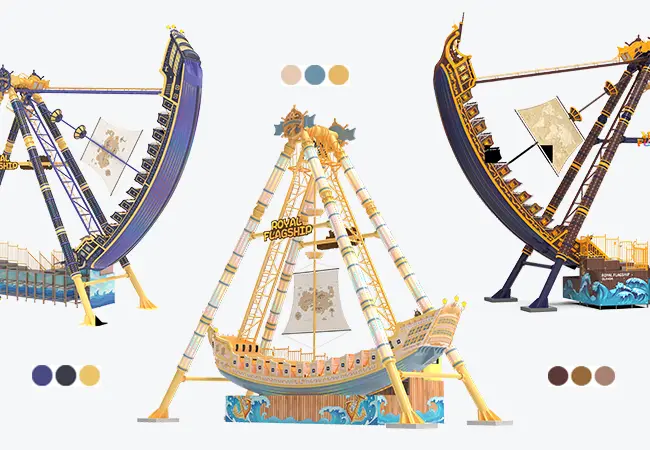

Striking Color Scheme Customization for Swinging Pirate Ship Ride
- Classic Color Schemes: Choose classic combination such as blue & yellow, cream & gold, or other schemes for a timeless pirate look..
- Brand Color Integration: Harmonize with venue or IP colors to ensure a coordinated and branded visual experience.
- Personalized Styles: Apply color blocking, gradients, vintage spray painting, and more for a unique color scheme.
- Accent Colors: Highlight handrails, gunwales, and other parts with bright colors or metallic paints to enhance visual impact.

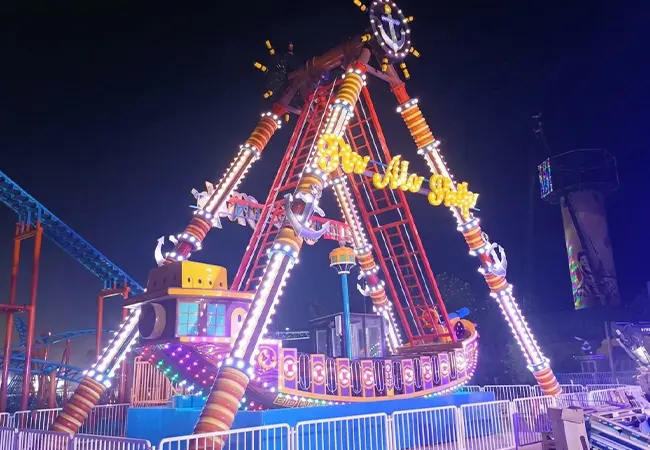

Cool Lighting System Customization
- Full-Ship Lighting: Install LED strips on the ship hull, hanger arms and support tower for full coverage illumination.
- Dynamic Effects: Combine point, line, and surface lighting with programmable controls to create flowing patterns, gradient transitions, and music-synchronized effects.
- Adjustable Colors: Full-color RGB LED lighitng enables single, dual, or multi-color changing effects to match different themes or moods.
- Branding: Display glowing logos, project names, or slogans for added visibility and identity.
Pirate Ship Ride for Sale: Built for Safety and Comfort
Beston Rides designs its pirate ship rides with reference to ASTM F2291 and EN 13814 standards, combining layered safety protections with ergonomic details for a safe and comfortable ride.

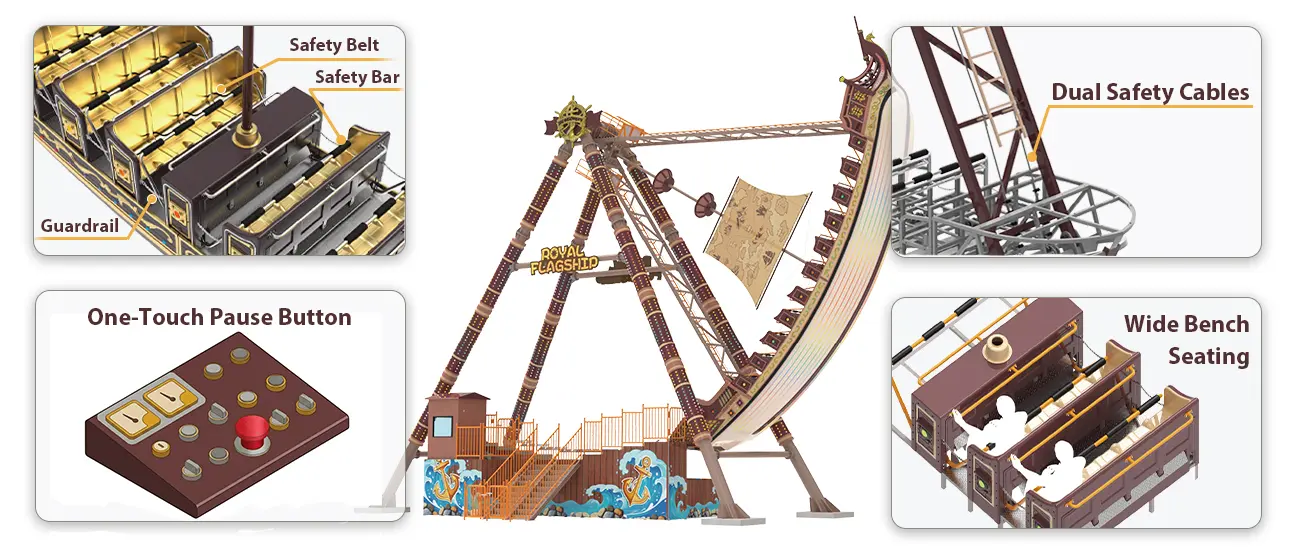

5 Passenger Safety Protections
- 3-Layer Safety Restraint: A safety bar + a two-point safety belt + a guardrail.
- Automatic Dual-Ratchet Lock: Locks automatically as the safety bar is lowered, and keep the bar in place even if one ratchet fails.
- Bar Sensor: Ensures the ride can not start until all safety bars are in the locked position.
3 Structure Safety Assurances
- Double-Ensured Main Arms: Dual safety cables provide backup protection for the main arms and their connecting joints.
- 5x+ Safety Factor: Key load-bearing parts, including the main arms and hanging brackets, are designed with a safety factor at least 5 for high-frequency use.
- Anti-Slip Floor and Steps: The floor uses 1.5mm-thick anti-slip aluminum tread plates, and eco-friendly rubber mats on the steps improve grip and provide impact cushioning, insulation, and anti-static properties.
Emergency Response
- One-Touch Pause: A single button lets the ride pause rapidly using its own weight and brakes under emergency situations.
- Emergency Unlocking: A mechanical release lets operators unlock the safety bars quickly to evacuate passengers in an emergency.
Enhanced Comfort Features
- Padded Safety Bars: Soft polyurethane (PU) covers the safety bars help reduce pressure on on riders’ legs and stay warm in winter and cool in summer.
- Wide Bench Seating: The long bench-shaped seating allows riders sit apart for personal space or sit close together with family and friends.
Quality You Can Trust: Designed for a 15-Year Service Life
We manufacture high-quality fairground rides with reliable performance to provide a pleasant entertainment experience and a smooth long-term operation.

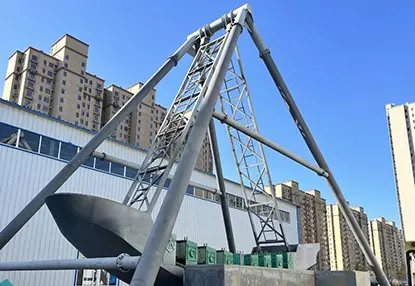

High-Strength Structural Steel
- Robust Framework: We use 5 mm-thick Q235B (comparable to ASTM A283C) steel pipes for all support arms, brackets, and columns to maximize their strength and durability.
- 4-Layer Anti-Corrosion Coating: A 4-layer, 100-120μm protective coating provides superior resistance against extreme heat, cold, and costal environments.
Superior Fiberglass Reinforced Plastic

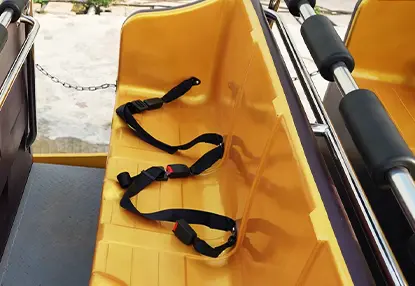

- Reinforced Seats: For swinging pirate ship ride seats, we use 7mm-thick FRP with embedded iron reinforcement, delivering a smooth, glossy surface, high impact resistance, and shape retention.
- Multi-Layer Craftsmanship: A 3-layer felt, 2-layer cloth manufacturing technique enhances corrosion resistance, color retention, and wear resistance.
Premium Industrial Components

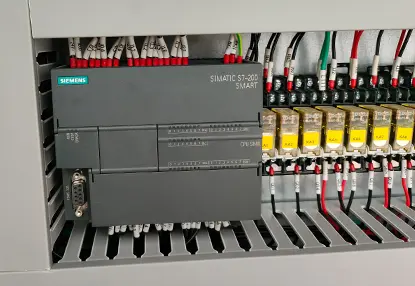

- Reliable Electric Components: Uses high-performance Boneng motor (a Sino-German joint-venture brand) and trusted Siemens, Delta and Schneider components to ensure high operational reliability.
- IP67 Waterproof Lighting: Fully dust-tight and capable of withstanding water immersion up to 1m for 30min, ensuring vibrant, uninterrupted lighting even during heavy downpours.

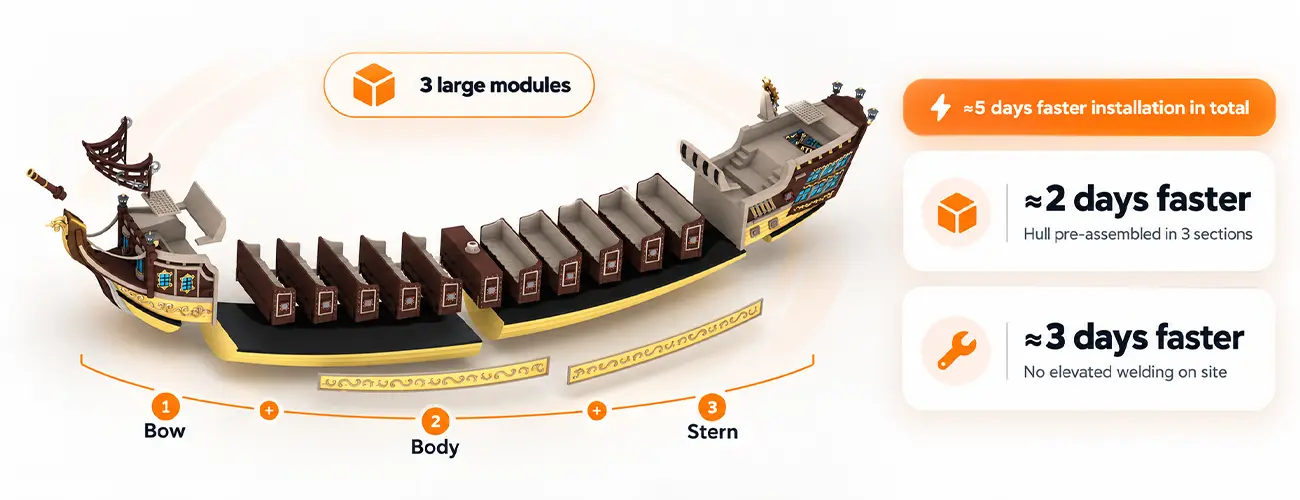

Pirate Ship Ride Modular Design: 5 Days Faster Installation
Beston 40-seat pirate ship ride adopts a modular design to simplify on-site assembly, reducing installation time by approximately 5 days.
Factory Hull Pre-Assembley
The ship hull is pre-assembled at the factory into three large sections: the bow, body, and stern. On-site, only the three sections need to be joined, saving approximately 2 days.
Reduced On-Site Welding
The maintenance platform uses modular bolted connections, eliminating the need for elevated welding on-site and saving approximately 3 days.
Comprehensive Services for Pirate Ship Ride for Sale
Production & Testing
- Production: Standardized production process in our 200,000 m² factory with a cycle of 30 days for the 40-seat viking ship ride for sale.
- Testing: Flaw detection tests on the main frame to ensure welding strength, followed by full machine tests (no-load, full-load, and partial-load) after production.

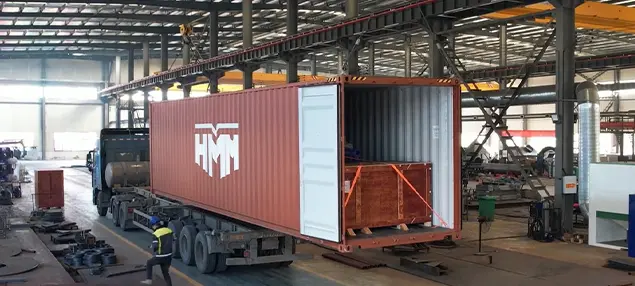

Transportation
- The packaging follows export standards to ensure that the product is not damaged;
- The shipment is checked according to the parts list to ensure nothing is missing or incorrect.
- Conduct secondary reinforcement inside the container.
Installation
- Send two engineers (one electrical and one mechanical) for theme park rides on-site installation guidance;
- Provide an operation manual; after installation and commissioning, offer free staff training;
- Installation and training duration: 7-10 days for the 40-seat model.
After-sales Service
- One-year warranty with free replacement of pirate ship swing ride parts due to product quality issues;
- Respond within 12 hours and provide a solution within 72 hours upon issue reporting;
- Engineers regularly visit for training, maintenance, and additional services.
Trusted Worldwide: Beston Rides in the Global Amusement Industry
Beston Rides exhibits at leading amusement shows around the world, including IAAPA Expo and DEAL in Dubai, and works with industry associations and accredited third-party certification bodies in several countries. This global network helps us keep pace with evolving industry standards and provide smooth, long-term support for every pirate ship ride project.
Unlocking the Potential of Pirate Ship Ride Across Different Spaces
Just like other thrill rides, the swing ship ride has achieved significant success in various venues due to its wide appeal. According to customer feedback, it draws large crowds and often becomes a standout feature in places like large amusement parks and public plazas.
- Amusement park & City park
- Malls & shopping center
- Theme park
- Leisure park
- Scenic spot
- Public square
Pirate Ship Ride FAQs
What are the passenger requirements for a pirate ship ride?
- Age Requirement: 12-60 years old. (Riders aged 12–14 must be accompanied by an adult or have guardian confirmation.)
- Height Requirement: 1.2-1.9m
- Health Restrictions: Individuals with heart disease, high pressure, pregnancy, intoxication, fear of heights, or advanced age are prohibited from riding.
Note: Requirements may vary slightly depending on the specific model. Final restrictions depend on custom design parameters and local regulatory standards.
How long does the production and installation take?
- Production: 30 days
- Installation: 7-10 days
Timelines scale with ride capacity and custom design requirements.
Can the ride be customized?
What environments can the ride operate in?
- Operating Temperature: -10°C to 40°C
- Operating Wind Speed: Up to 15 m/s (Beaufort Force 7)
- Structural Wind Load: Up to 0.7 kN/m²
- Structural Snow Load: Up to 0.5 kN/m²
- Altitude: Normal operation up to 2,000m above sea level.
- Coastal Climate: Withstands salt spray and high humidity.
What are the site requirements for a pirate ship ride?
- Footprint: 27 m × 11 m, including the safety envelope; minimum required space is 19 m × 9 m.
- Height Clearance: 17m
- Foundation: Fixed on a concrete foundation (we also offer foundation-free models to match your site conditions).
- Drive Power: 45kW
- Installed Capacity: 65-80kW, depending on configuration
- Power Supply: 380 V/220 V, 50 Hz (3N+PE)
