Energy storm ride is a thrill ride that spins riders while tilting them nearly upside down. It carries riders around the central column at speeds of up to 5.6 m/s, while each cabin rotates independently as fast as 1.8 m/s and tilts up to 175°. Together, these synchronized motions create an exhilarating sensory experience with constantly changing orientations and weightlessness, immersing riders in the forces of a real storm.

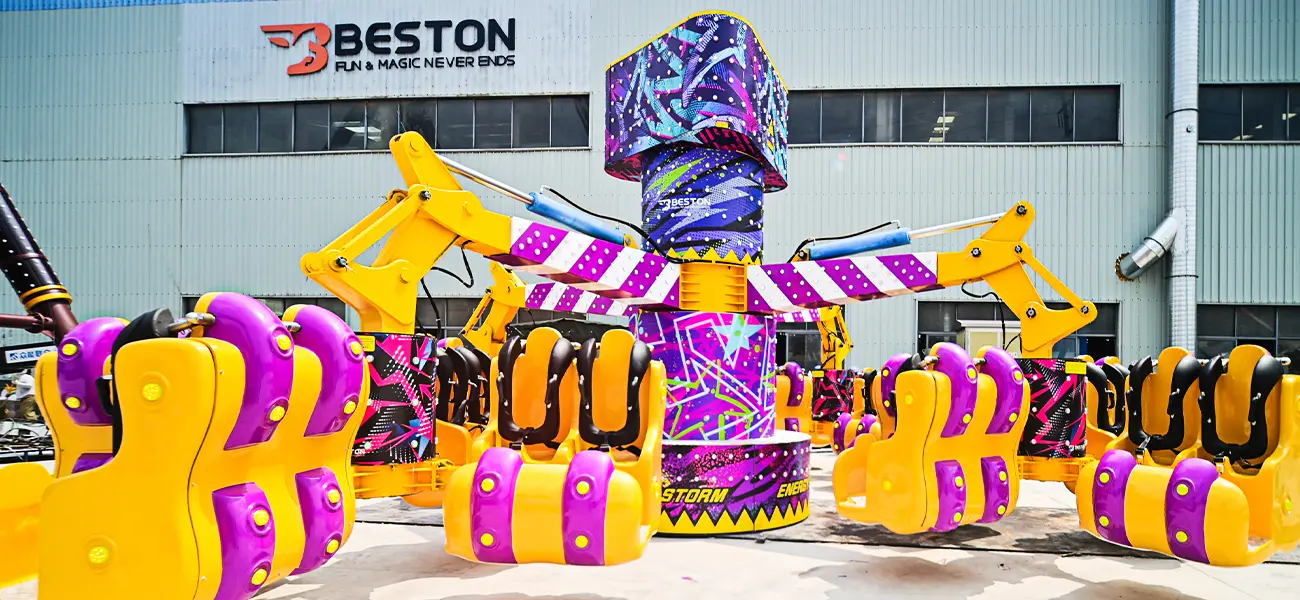

32-Seat Energy Storm Ride Designed for Faster Payback
With a four-arm spinning structure and a striking appearance, the energy storm ride for sale helps parks achieve faster and more reliable payback.
384 Riders per Hour
Four support arms carry 16 two-seat cabins — large enough for a full classroom of 32 students. With a 4-minute ride cycle and about 1 minute to load and unload, it completes a cycle every 5 minutes, for a total of up to 384 riders per hour.
Eye-Catching Appearance
Beston Rides independently designed the ride’s exterior, featuring a bright purple-yellow palette, mecha-style lines, hidden wiring, and flowing ambient lighting. It delivers strong visual appeal to draw crowds.
| Parameter | Energy Storm (ZKX32A) |
| Capacity | 32 persons (2 seats/cabin) |
| Number of Cabins | 16 cabins (4 cabins per arm) |
| Equipment Height | 4.7m (static) / 5.2m (dynamic) |
| Footprint | 13.5m × 13.5m |
| Central Column Rotation Speed | ≤5.6 m/s |
| Cabin Rotation Speed | ≤1.8 m/s |
| Cabin Tilt Angle | Up to 175° |
| Operating Cycle | 240s (4 min) |
| Drive Power | 30kW |
| Installed Capacity | 35kW |
| Rated Voltage | 50Hz 380V/220V (3N+PE) |
| Noise Level | <60 dB (as quiet as a normal conversation) |
| Designed Service Life | 15 years |
Energy Storm Ride for Sale: Triple-Axis Motion, Triple the Thrill
The energy storm fair ride delivers a high-intensity, multi-layered thrill experience by unifying three synchronized motions into a single dynamic system.

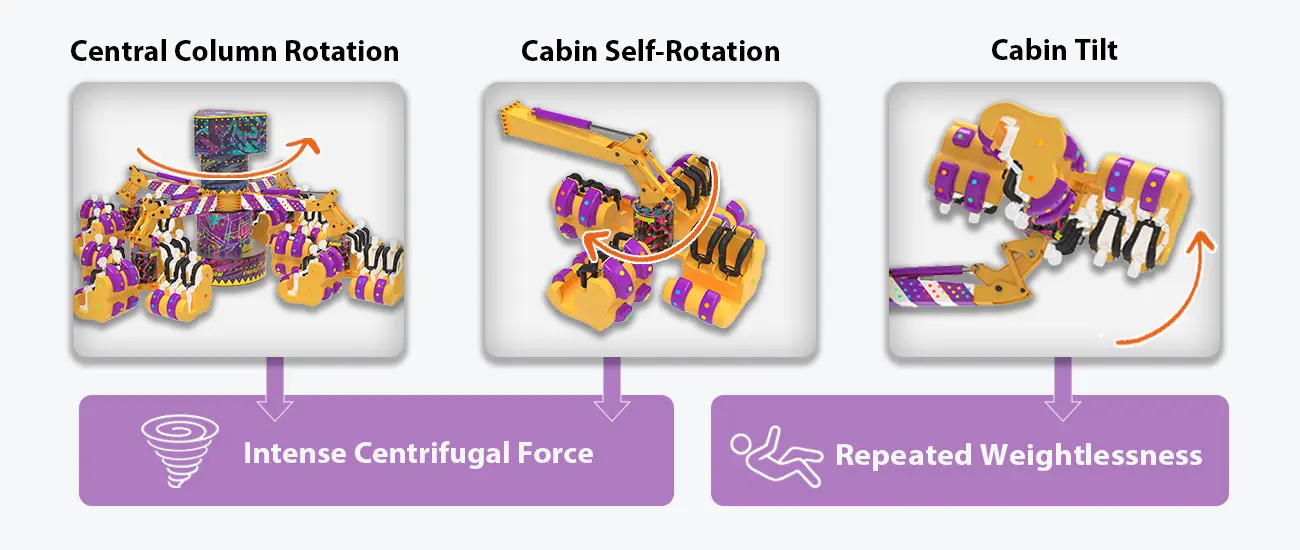

Triple-Axis Motion System
- Central Column Rotation: The central column rotates all four support arms at speeds of up to 5.6 m/s.
- Cabin Self-Rotation: An independent axle at the end of each support arm spins the connected four cabins at up to 1.8 m/s.
- Cabin Tilt: Each cabin tilts up to 175°, creating near-inverted positions.
Multi-Layered Experience
The smooth combination of the three motions creates intense sensations.
- Intense Centrifugal Force: During the combined central column rotation and cabin self-rotation, riders feel strong outward centrifugal forces that recreate the thrill of being inside a storm.
- Repeated Weightlessness: At the peak of each tilt, riders experience a brief moment of floating sensation.

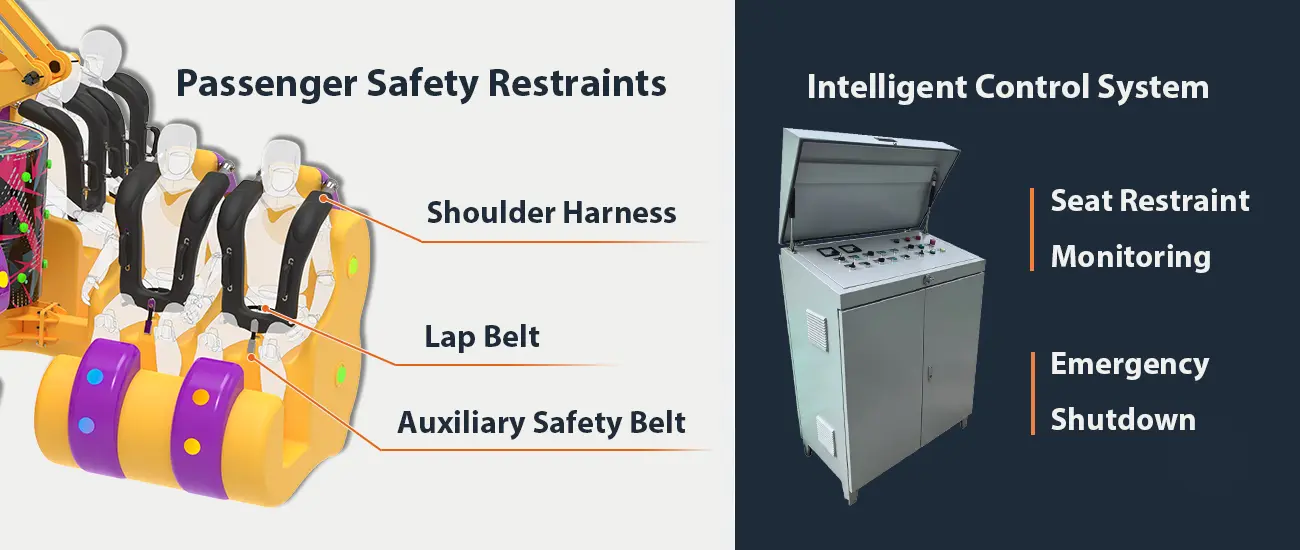

Dual Safety Protection of Energy Storm Ride
Rider safety on the energy storm ride relies on two independent systems working together: a multi-layer restraint mechanism and a PLC-based intelligent control system.
Passenger Safety Restraints
Three layers of seat safety restraints work together to protect riders from shifting out of the correct position during intense motions.
- Shoulder Harness Restraint — secures the upper body during intense motions.
- Lap Belt Restraint — stabilizes the lower body during tilts and rotations.
- Auxiliary Safety Belt Restraint — connects the restraint bar to the seat structure as an extra layer of protection.
Intelligent Control System
Beston Rides’ independently developed PLC-based intelligent control system monitors key safety components in real time and manages emergency responses.
- Seat Restraint Monitoring: The system alerts operators immediately if any restraint is not properly secured.
- Emergency Shutdown Protection: In the event of a power failure, the system automatically slows the ride and lowers the cabins safely to the loading position.

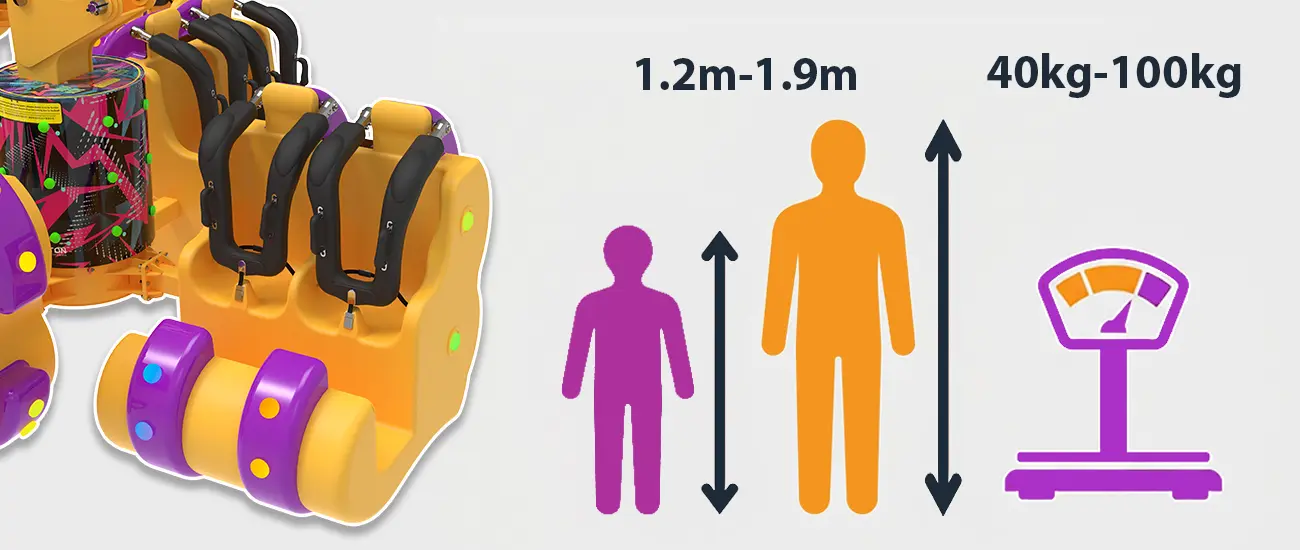

Energy Storm Ride Seating Design: Adaptability for Diverse Riders
Riders of different body shapes can enjoy a stable and comfortable fit on this thrill ride, thanks to the adaptive seating design with ergonomic support and preset restraint.
Ergonomic Seating Design
The seats are ergonomically designed to adapt to different body shapes and distribute pressure evenly, in order to maintain a secure posture through various movements for riders weighing 40 kg to 100 kg.
Adjustable Safety Restraint
The height of the shoulder harness restraint can be adjusted to various body sizes in different regions, ensuring an optimized fit for riders between 1.2m and 1.9m.
Note: Riders under 1.2m or with certain health conditions are not permitted to ride, per safety guidelines.
Customize a Unique Energy Storm Fair Ride for Your Park
Beston Rides provides customized flexible cabin configurations, personalized colors, and dynamic lighting effects to create a unique funfair ride that fits your park’s theme and operational needs.

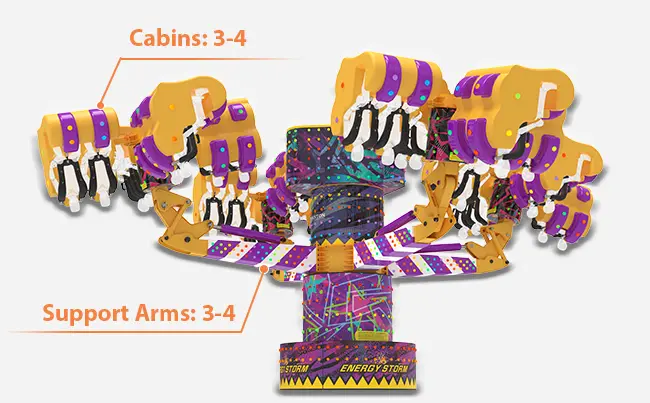

Custom Capacity
Three or four support arms and three or four cabins can be customized to match different park sizes and budgets.

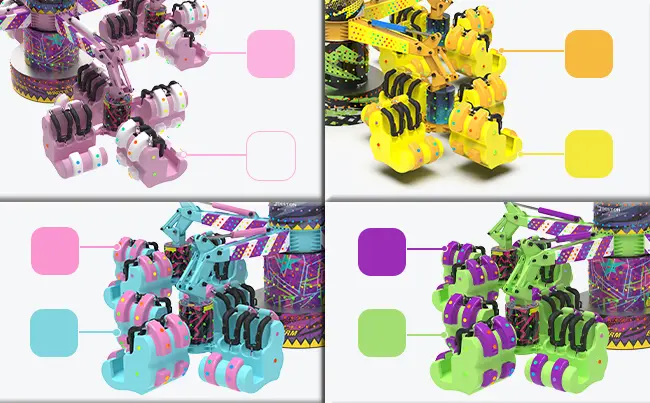

Custom Color Design
Custom colors (blue, pink, green, yellow, etc.) and patterns create a distinctive ride that integrates smoothly into the overall park theme.

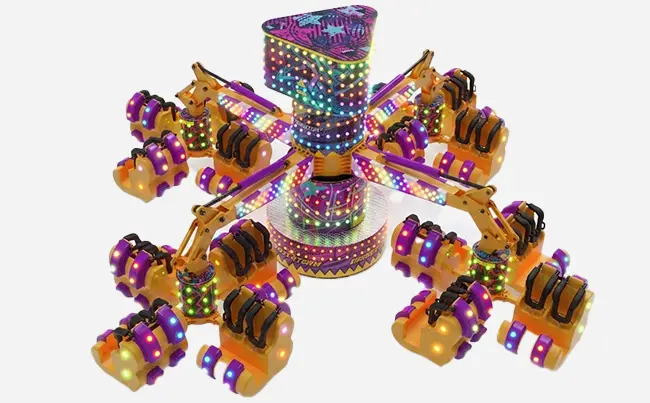

Custom Dynamic Lighting
Waterproof RGB lighting offers programmable themes and dynamic effects (including breathing, pulsing, and motion/music synchronization), creating eye-catching visuals day and night.
Energy Storm Ride Modular Design Optimize Efficiency

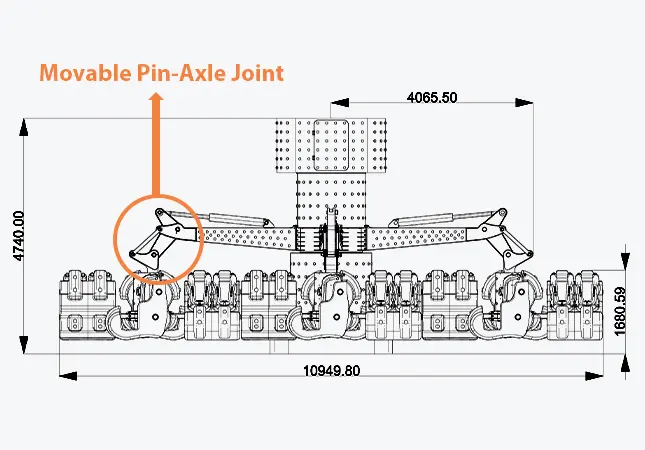

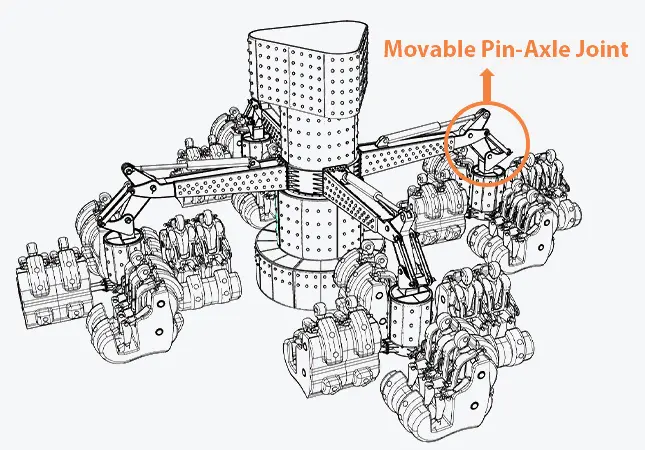

With a modular design, the four support arms are pre-assembled at the factory and connect directly to the central column through movable pin-axle joints. This simplified structure increases efficiency across three key stages:
Efficient Shipping
The entire ride packs into only two 40HQ containers with fewer loose parts, cutting both transit damage and shipping costs.
Rapid Installation
The easy assembly between the support arms and the central column reduces the installation cycle from the usual two weeks to just one week.
Flexible Maintenance
Operators can conduct maintenance on support arms without disassembling the whole structure, shortening downtime from about 3 days to 2 days.
Energy Storm Ride – Engineered for 15 Years of Reliable Operation
We adopt a premium structure and a superior drive system to guarantee a 15-year continuous high-load operation and non-stop thrills.
Premium Structure Built from Durable Materials

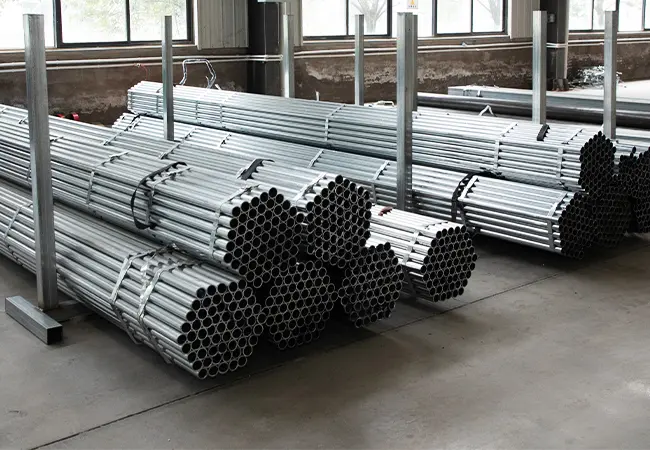

- High-Strength Main Frame: Built from national standard Q235B steel over than 1.5× industry-standard thickness for extended fatigue resistance (e.g. a 30mm mounting flange of a main slewing bearing compared to the typical 16–20mm).
- Durable Lightweight Cabin: Cabin shells combine FRP composite with aluminum, plastic, and polycarbonate (PC) components for a lightweight, long-lasting structure.
- Robust Restraint Frame: Each shoulder restraint is built around a stainless-steel internal frame, providing lasting support through years of repeated locking and release.
Stable Drive System Built from Advanced Supporting Hardware
- Top-Tier Power Systems: Boneng motors (a Sino-German joint venture brand) deliver strong load capacity and impact resistance.
- Proven Hydraulic System: A mature hydraulic system minimizes energy loss and keeps operating noise under 60 dB — about as quiet as a normal conversation.

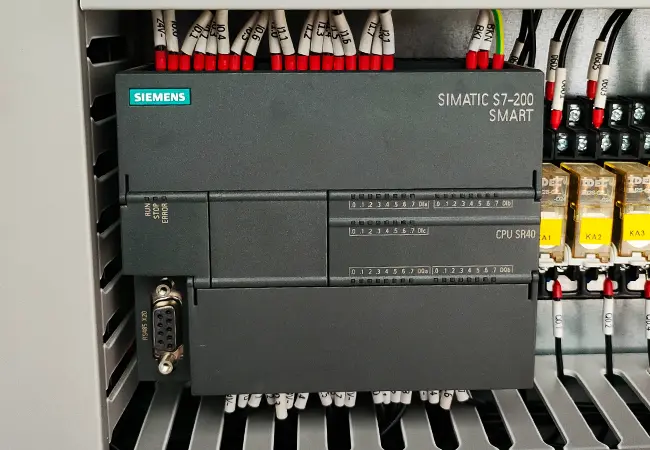

- High-Performance Electrical Components: Siemens and Schneider electrical components support continuous operation while reducing downtime.
4 Advanced Manufacturing Processes to Ensure Superior Quality Delivery
Beston Rides produces the energy storm ride in our own 200,000 m² factory with advanced craftsmanship to ensure its high-standard strength and durability.

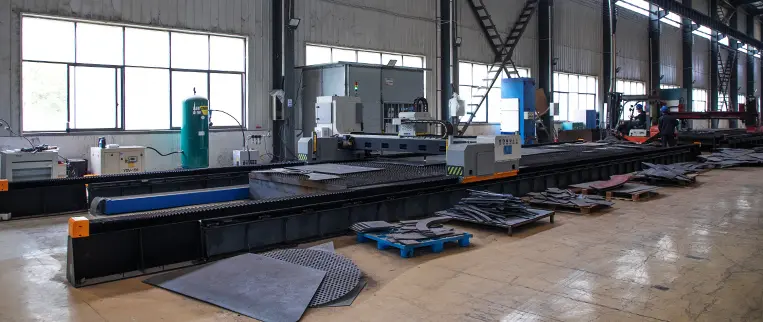

±0.2 mm Precision Cutting
Advanced CNC cutting achieves accuracy within 0.2 mm for precise assembly of complex structural components.

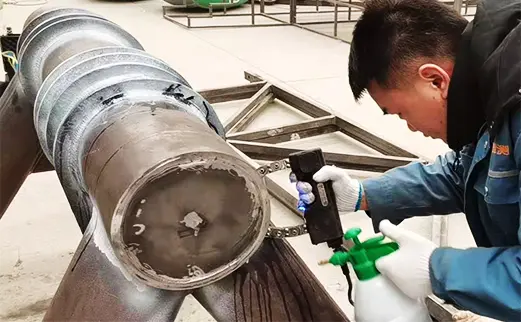

Non-Destructive Testing
After welding, every core component undergoes three testing methods — ultrasonic testing, liquid penetrant testing, and magnetic particle testing — to ensure structural integrity.

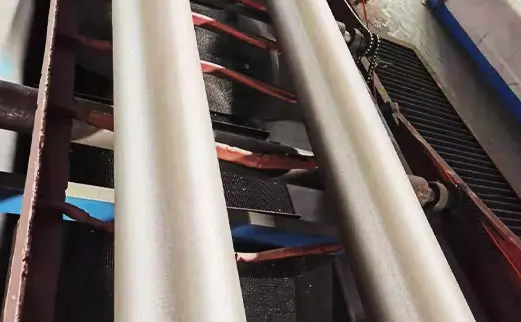

Sandblasting
High-speed abrasives remove rust, oxide scale, and old coatings, creating an ideal surface for strong coating adhesion.

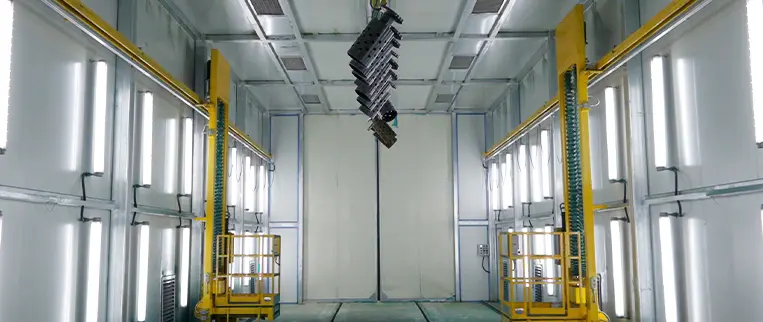

Three-Layer Coating
High-temperature baked coating resists heat, salt spray, cold, and humidity for long-term outdoor durability.
Energy Storm Ride Project Support From Planning to Long-Term Operation
As an experienced theme park rides manufacturer, Beston Rides provides complete project support for the energy storm ride for sale to ensure smooth project delivery and long-term operation.
Free Customized Layout
Share your footprint, budget, and expected capacity, Beston Rides provides it for you within 24 hours.
Traceable Manufacturing
We keep customers informed of the production progress by sharing photos and videos every 1–2 weeks.
On-Site Installation & Training
An experienced engineering team guides on-site installation and trains operators on daily operation and emergency procedures.
One-Year Warranty
Free replacement of parts affected by normal wear and tear, along with 24-hour response online technical support and regular follow-ups.
Energy Storm Ride FAQs
Who can ride the energy storm fair ride?
Can the equipment be customized to fit my park’s theme?
Is energy storm ride suitable for harsh climate conditions?
What safety systems are in place?
What are the site requirements for energy storm ride for sale?
How long does it take to produce and install the 32-seat energy storm ride?
- Production: Approximately 20 days.
- Installation: About one week, enabled by its modular design (reducing on-site installation time by around 50%).
Note: Complex lighting systems or customized cabin designs may extend the overall timeline.
