Beston Rides’ 35m Drop Tower - “ZERO-G Elevator” features a Floating Alien UFO design and has successfully passed a full series of safety tests.
Now officially launched — it’s time to upgrade your park experience!

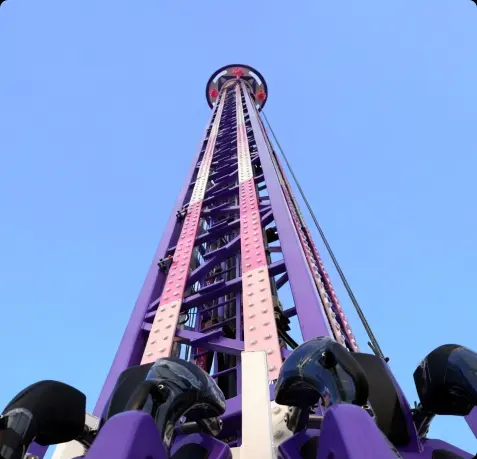

Equipment Height:30m
Running Height:27.2 m
Lifting speed:≤ 2 m/s
Descending speed:≤ 6 m/s
Rotation speed:6.6 rpm
Thrill Level：
Design Inspiration — 35m Drop Tower - “ZERO-G Elevator”

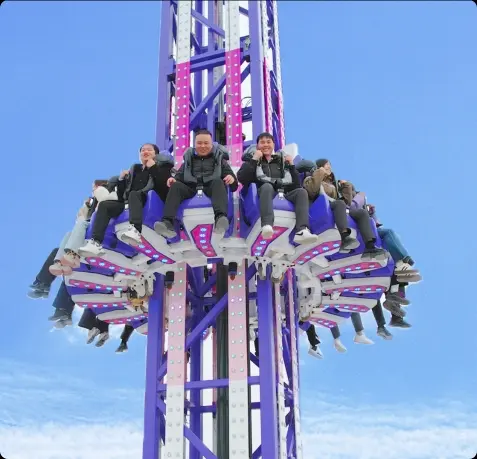

In the boundless depths of the universe, a mysterious light streaks across the sky — a UFO hovers above the tower, glowing with the power of an unknown civilization. Explorers step into the “ZERO-G Elevator” to begin their unknown universe journey. As it rises, the UFO’s mysterious energy unleashes a storm of weightlessness and gravity. It’s a thrilling challenge of courage at 35 meters high.
Double the Thrill:
Dual increase in ascent and descent speeds.
unleash weightless excitement in a flash!
Multiple play modes:
Dynamic curved motion paths.
changing rhythms for even more fun!
Unique Design Theme:
Floating Alien UFO design.
cloud-riding experience!
Smart Control: One-touch Start
easier operation!
Customizable Lighting and Color
your park’s theme.

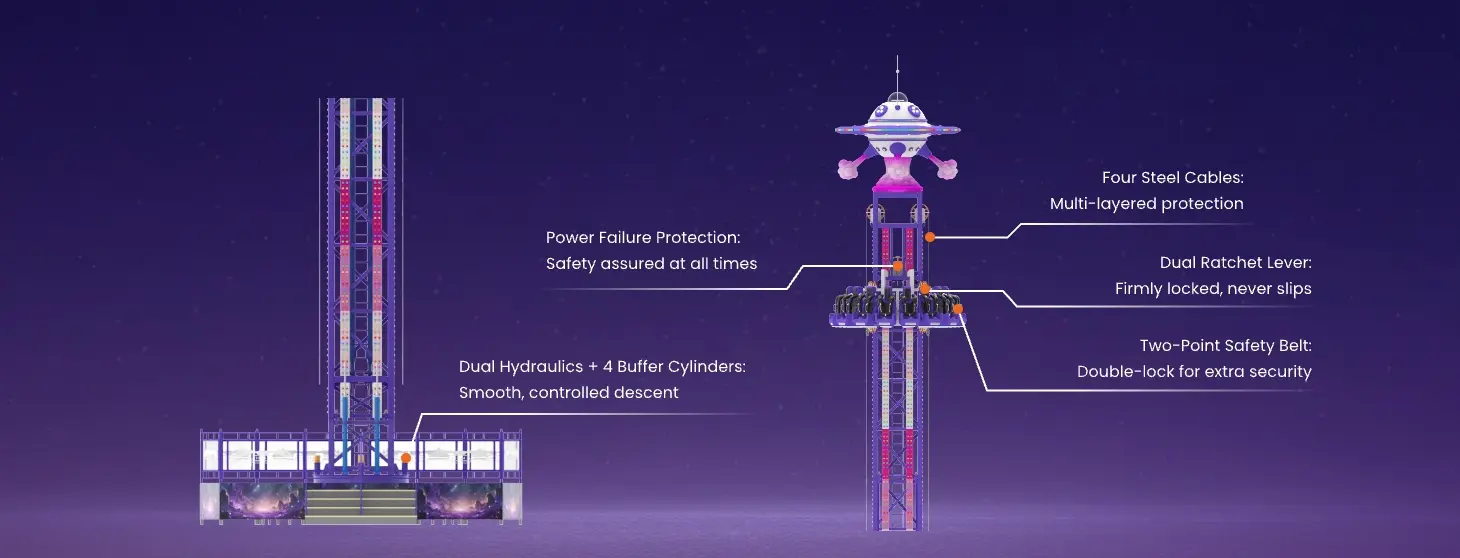

Five Safety Assurances
Thrills Everyone On Its Opening Day
75 brave riders were the first to take on the challenge — their screams and applause turned the whole scene into pure excitement!
Customer Shared:
“Ha-ha-ha! Amazing! The rapid up-and-down motion combined with
continuous rotation was thrilling and so much fun! I can’t wait to ride it again!”
Technical Parameters
| Basic parameters | Product Name | 35m Drop Tower Rides "0-G Elevator" |
| Product Model | FXT16A | |
| Rated Voltage | 50Hz 380V/220V (3N+PE) | |
| Driving Power | 106KW | |
| Installed Capacity | 120KW (Depending on configuration) | |
| Rated Capacity | 16 people | |
| Rated Load | 75kg/person | |
| Swing Angle | 35m (Includes lightning rod 36m) | |
| Equipment Height | 27.2m (above the ground) | |
| Operating Height | Lifting speed < 2m/s Descending speed < 6m/s | |
| Rotation Diameter | 4m | |
| Motion Form | The cabin rises, falls, and rotates along the tower. | |
| Control Mode | PLC automatic/manual mode | |
| Rotation Speed | 6.6rpm | |
| Drive Mode | Hydraulic device lifting | |
| Operating Cycle | 260s~280s | |
| Foundation Type | Fixed foundation | |
| Occupied Area | L12.6m * W10.5m | |
| Safety Envelope | L14m * W12m * H36m | |
| Service Life | 15 years | |
| Environmental conditions | Ambient Temperature | 0℃ ~ 40℃ |
| Ambient Humidity | <90% | |
| Altitude | < 2000 m | |
| Operating Conditions | Stop operation during severe weather or power failure, including lightning, rain, dense fog, snow or frost, ice on the main structure, or wind over 15 m/s. |
Rider Requirements
Height:1.2 m ≤ height ≤ 1.9 m
Weight:30kg～90kg
Ride Capacity:Total passenger weight ≤ 1200 kg
Age:12 – 60 years
Note: Riders aged 12–14 must be accompanied by an adult or have guardian approval before riding.
Conditions:
All riders must meet the health and safety requirements stated in the Rider Instructions.
Note: Individuals with heart disease, hypertension, pregnancy, alcohol intoxication, fear of heights, or advanced age are not permitted to ride.
Minimum height:1.2 m
Maximum height:1.9 m

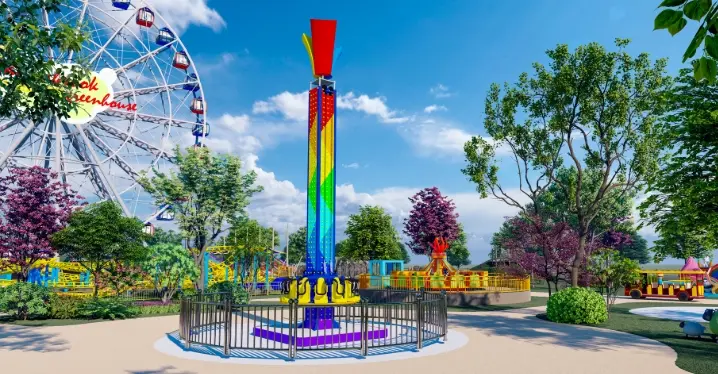

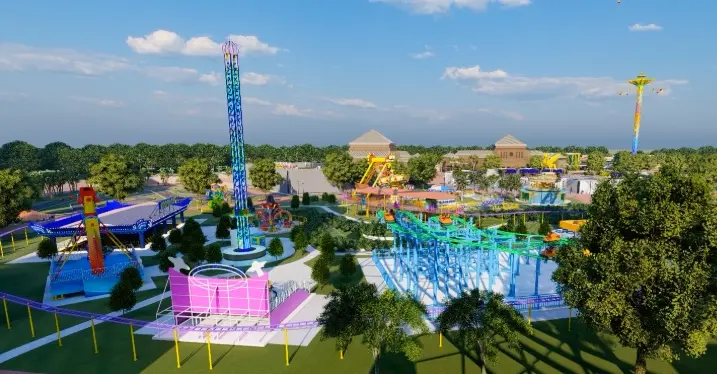

Application Scenarios
Strategic Partners
Beston Rides is dedicated to research & development of innovative amusement rides and provision of complete amusement park solutions. To date, we have completed more than 100 large-scale amusement park projects, earning the trust and recognition of clients worldwide.
More Exciting Rides to Ignite Your Park
Take Your Park Revenue to New Heights!
Double the thrills, double the visitors, and double your profits. Don’t wait—get your customized solution today and turn 35m Drop Tower- “
ZERO-G Elevator” ride into a revenue booster!
